DIY Full 125khz RFID Door Access Control System Kits with 12V3A Power NO NC Lock Door Bell
$76,99$110,99 Select options
Sale!

DIY Full 125khz RFID Door Access Control System Kits with 12V3A Power NO NC Lock Door Bell

$76,99$110,99

-11%

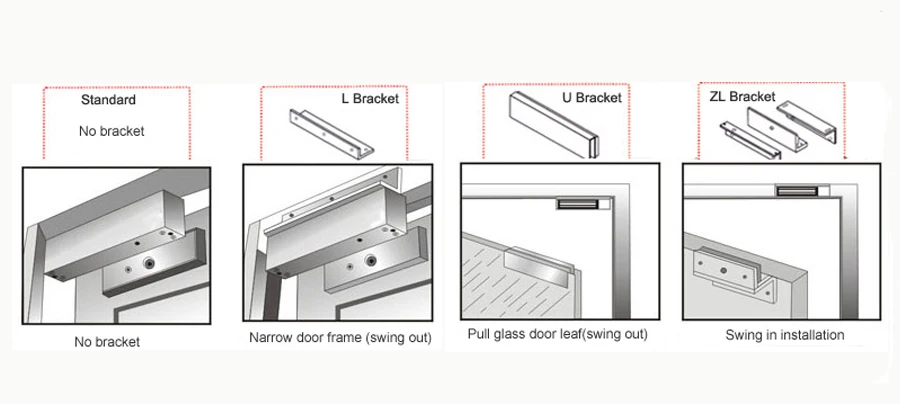

130NC Lock W PWR130NO unlock W PWR131NC Lock W PWR131NO unlock W PWR132NC Lock W PWR132NO unlock W PWREM148B Lock W PWREM200B Lock W PWREM200BU Lock W PWREM248B Lock W PWRPackage 01 EM180Package 02 EM180BPackage 03 EM180UPackage 04 EM180ZL
Clear



For Wholesale and Quotations it takes 1-3 days to get your quote according to the item complexity. The shown price is for reference and may change according to the market.



Enquiries about the products can be through our official channels using email, social media and chatbot.



Master Controller

Specifications may be changed without notice If factory improve it

12V3A Power Supply Unit

Power supply for Door Lock Access Controller
Input: 100-240V AC, 50/60Hz
Output: 12V 3A
Interface: 12V+,GND.PUSH,NO,GND,NC,PUSH+

Specifications may be changed without notice If factory improve it

Voltage: DC 12V
Current: 380-430mA ;
Working mode:power-on to lock
180kgs (350lbs) holding force.
Built-in reverse current protection device (MOV).
Aluminum shell adopts high strength material, with hard anodised processing.
Fit for wooden door, metal door, glass door, fireproof door, etc.

EM180 Size
Lock Body: 170*40.2*21.8 mm (Approximate size)
Mag Sheet: 140*12.8*33.2 mm (Approximate size)

EM180B Size
Lock Body: 155(195)*33.8*22.4 mm (Approximate size)
Mag Sheet: 139.7*12.6*32.3 mm (Approximate size)

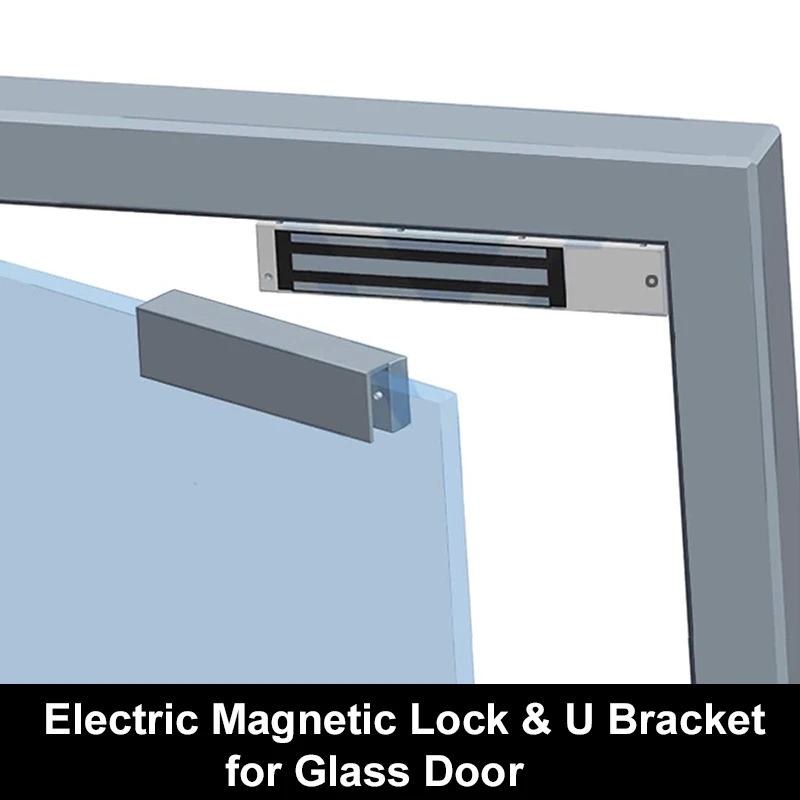

EM180 Surface Electric Magnetic Lock

EM180B Concealed Electric Magnetic Lock

Please watch this video to confirm Correct Strike lock(NO or NC)

China Factory Standard
NO means without power, Lock will be lcoked;
NC means without power, Lock will be unlocked

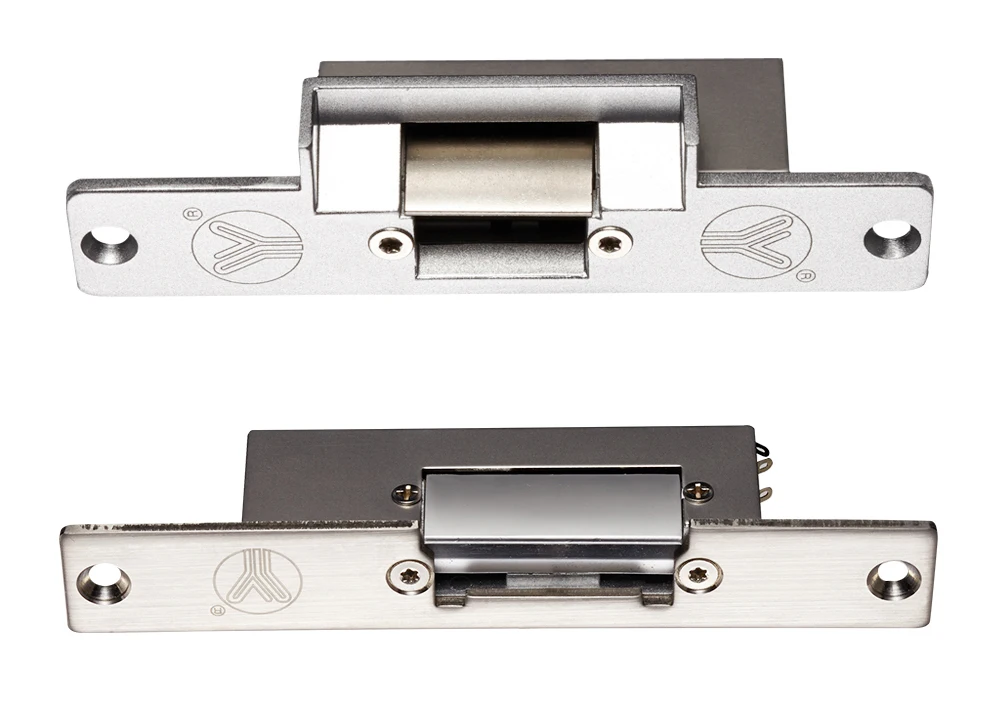

YS130/YS131 Strike Lock

Lock Size:YS130–150Lx39.5Wx33.5H(mm) YS131–160Lx25Wx31H(mm)
Holding Stength:500kg
Voltage:DC12V
Current:200mA(YS-130NO/YS131NO); 200mA(YS-130NC/YS131NC)
Feature:Fail Secure(YS-130NO/YS-131NO) ;Fail Safe(YS-130NC/YS-131NC)

YS132 Strike Lock

Lock Size: 250Lx25Wx31H(mm)
Holding Stength:500kg
Voltage:DC12V
Current:200mA(YS-132NO); 200mA(YS-132NC)
Feature:Fail Secure(YS-132NO) ;Fail Safe(YS-132NC)
Suitable For: Wooden Door,Metal Door,PVC Door

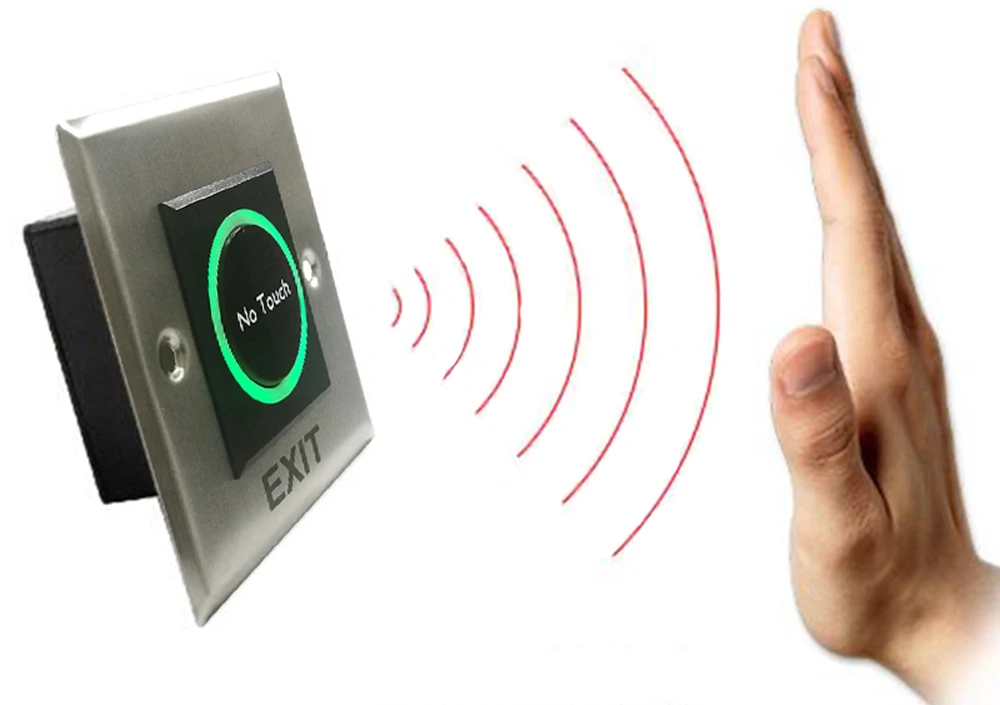

No Touch Infrared Exit Button

Material: Stainless steel
Contact rating: 3A, AC 120V / DC 30V
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): -20 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
Size(approx.): 86*86*27mm
Weight(approx.): 78g

12V Wired DingDong Door Bell

Instructions:

1 Connected to DC12V power supply, the red positive (+), then the black negative (-)

2 Green, yellow, two-line short answer it, or connect with master control door bell interface, it can send two ding-dong ding-dong sound

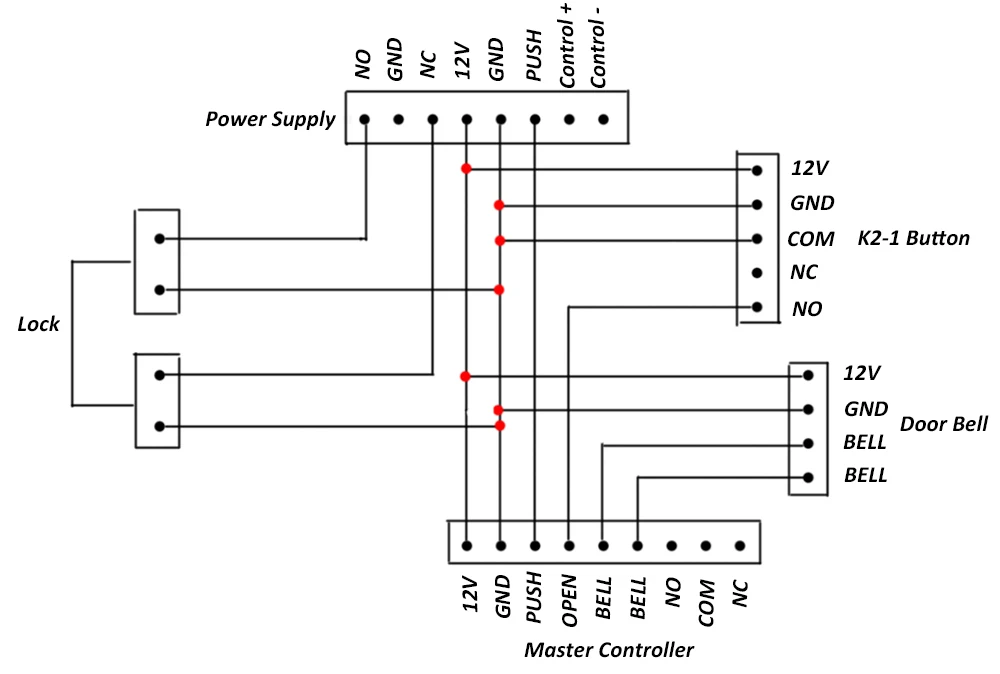

Diagrames

There are two Connect ways, normal we recommend the first one.

Additional information

Brand Name

gzpzdp

Origin

CN(Origin)

Model Number

A1 Kit

Certification

CE

Smart home platform

NONE

Direction

None

Product Name

Door Access Control Kits

Controller

RFID 125khz

Power Supply

12V3A

Exit Button

No Touch Infrared Exit Button

Door Bell

12V Wired Door Bell

Lock

Option for Mag/Bolt/Strike Lock
