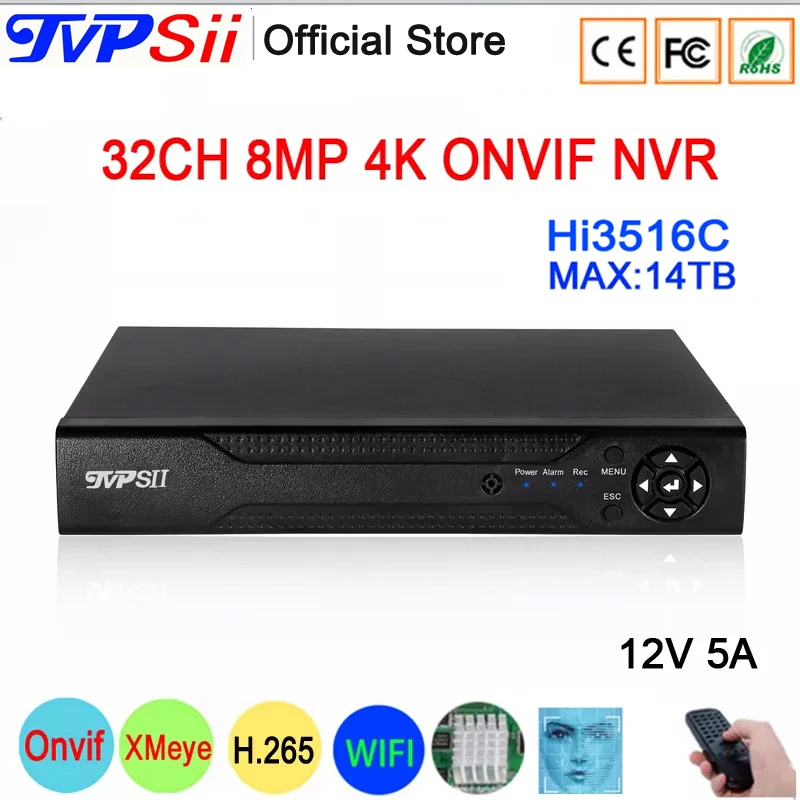

Hi3536C XMeye Audio Face Detection Surveillance Video Recorder 8MP 4K 32CH 32 Channel 16CH H.265+ Onvif WIFI CCTV DVR NVR System
$78,99$357,99 Select options
Sale!

Hi3536C XMeye Audio Face Detection Surveillance Video Recorder 8MP 4K 32CH 32 Channel 16CH H.265+ Onvif WIFI CCTV DVR NVR System

$78,99$357,99

-40%
ChinaRussian Federation
1T2T3T4TNone
16CH32CH9CH
AU PlugEU PlugUK PlugUS Plug
Clear



For Wholesale and Quotations it takes 1-3 days to get your quote according to the item complexity. The shown price is for reference and may change according to the market.



Enquiries about the products can be through our official channels using email, social media and chatbot.



Friendly reminder:

  • HiSilicon processor has stable performance, long life, and is not easy to heat up. 9CH is XM8536D processor

  • we ship parcel by aliexpress standard shipping way,it often faster than ship from Russia warehouse.(Except Moscow region)

  • 12V 2APower adpater 16CH NVR 32CH NVR will not work with 2TB,3TB,4TB hard disk ,so must use 12V 3A 5A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful).

Q:How to  use face detection function?

A:It is work with AI Camera ,and click link for see operation video, link in description.(if the nvr not have the face detection function,please upgrade to newest version)

  • 9CH*4K 8MP
  • 32CH*4K 8MP
  • 16CH*4K 8MP

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:Is it support other brand IP camera?

A:This nvr have NETIP protocol (XM:Xmeye and ICsee System ),onvif protocol and so on…,so if your IP camera,wifi camera ,PTZ IP camera is Tvpsii brand ,XM brand and other onvif brand ip camera,it work well.

32CH:

Feature:

  • Support HDMI 4K output VGA HD output;
  • Support ONVIF;access third party;
  • Support web, CMS, center platform management software MYEYE,provide SDK development;
  • Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
  • Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP,UPNP, EMAIL,IP searches, Alarm Center, etc.)

32CH:

Model

6032NVR

System

Main processor

Hi3536C

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4/9/16/25

Video

Video input (IP)

32*8mp

Access bandwidth

300Mbps

Forwarding bandwidth

240Mbps

Video compression

H.265/H.264

Display quality

Max:4K

Playback quality

4K/5M/1080P

Decode

1*4K/2*5M/4*1080P

Motion detection

Support(depend on camera)

Audio

Audio compression

G.711A

Intercom

support

Record &    playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

1*4K/2*5M/4*1080P

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDD Network

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

External interface

Video output

1ch VGA,1ch HDMI HD output

Audio I/O

0/1

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M/1000M Adaptive Ethernet port

USB interface

2*USB2.0 ports

HDD

1 SATA(Up to 8TB for each disk)

ESATA

No

Serial interface

No

Other

ONVIF

Support

Power supply

12V 5A

Power Consumption

<10W(Without HDD)

Work environment

Temperature:0℃-+55℃, Humidity:10%-90%RH,Atm:86kpa-106kp

Dimension(Motherboard)

135mm*81mm

Weight

1.6kg

9CH&16CH:

Model

8016NVR

8009NVR
System Main processor

Hi3536E

XM8536D
Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/2/4/6/8/9/16

1/2/4/6/8/9
Video Video input (IP)

16*4K

9*4K
Access bandwidth

64Mbps

Forwarding bandwidth

64Mbps

Video compression

H.265AI/H.265+ (compatible with H.265/H.264)

Display quality

Max:4K

Max:1920*1080
Playback quality

4K/5M

4K/5mp/3mp/1080P
Humanoid face detection

Support(depend on camera)

VR

Unsupport

Motion detection

Support(depend on camera)

Audio Audio compression

G.711A

Intercom

support

Record &    playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

4K(1*real time)/5M(1+1)/4M(2+1)/3M(3+1)/1080P(5+1)

1ch*4k/1ch*5M/1ch*4M/2ch*3M/3ch*1080P

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDD,Network

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

External interface Video output

1ch VGA,1ch HDMI HD output

Audio I/O

0/1

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

USB interface

2*USB2.0 ports

HDD

1 SATA(Up to 14TB for each disk)

ESATA

No

Serial interface

No

Other

ONVIF

Support

Power supply

12V/3A

12V 2A
Power Consumption

<10W(Without HDD)

Work environment

Temperature:0℃ -55℃,Humidity:10%-90%RH,Atm:86kpa-106kp

Dimension(motherboard)

118mm*46mm

Weight

1.6KG

Friendly Reminder:

  • we only spent two days (48 hours)  for sent parcel , have tracking number and tracking number information,Thanks!
  • if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
  • if you have some request for custom clrearance and Tariff, please leave message in order or sent messages by other communication APP,Thanks!

Notice:

If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!(9CH not support wifi function)

Our Surveillance Video Recorder  NVR have heat sink,metal material (long life),remote control,3G(4G)function,WIFI function and so on, quality assurance.

Notice:

  • 12V 3A Power adpater 32CH NVR will not work with 5TB,6TB,7TB,8TB hard disk ,so must use 12V 5A power adpater!!!(many seller use 12V 2A for cutting cost,so be careful).
  • if there is Software File (CMS,VMS)in CD,you can download it by link.

Additional information

Brand Name

TVPSii

Origin

CN(Origin)

Network Protocol

PPPoE

Two-way Audio

No

Compression Format

H.265

Wireless Security

WEP

Hard drive Interface Type

SATA

POE

None

Certification

RoHS

e-Cloud(P2P)

Yes

IP Mode

Static IP address

Hard Drive Size

3.5''

Video Input Interface

RJ45

Audio Compression Format

G711A

Model Number

6032NVR/8016NVR/8009NVR

Audio Input

No

Technology

Network

Supported Operating Systems

Mac OS

Video Standard

PAL

Smart home platform

Other

Backup Type

Hard Drive

Alarm Action

Local Alarm

Video Output

1VGA + 1HDMI-Compatible

Network Interface

3g

Audio Output

1CH RCA

Communication Interface

None

Supported Mobile Systems

iPhone OS/android

ONVIF

Support

Main processor

Hi3536C/Hi3536E

Warranty

one Year

Language

27 Multi language(English,Spain,Russian etc.)

CD File(CMS,VMS)

https://baike.xm030.cn/download.html#30

P2P Cloud

http://www.xmeye.net
